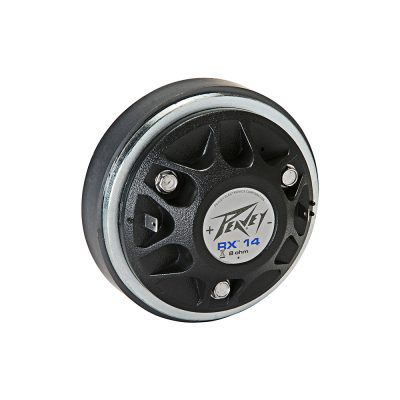

Peavey RX 14 – 1.4-Inch 60-Watt High Frequency Driver
SKU: RX14
-
Peavey RX 14 is a 1.4-Inch 60-Watt High Frequency Driver.
Our Price: $69.99
Out of stock
Description
Peavey RX 14 is a 1.4-Inch 60-Watt High Frequency Driver.
Features:
| Voice Coil Cooling: | Ferrofluid |
| Throat Parameter: | .938″ / 23.8 mm |
| Nominal Impedance: | 8 Ohms |
| Minimum Impedance: | 7.1 Ohms |
| DC Resistance: | 6.8 Ohms |
| Power Capacity 1000 Hz to 20,000 Hz: | 120 W peak, 60 W program, 30 W continuous |
| Sensitivity: | 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn |
| Nominal Efficiency: | 30% |
| Frequency Response: | 1.5 kHz to 20 kHz |
| Recommended Crossover: | 1,800 Hz at 12 dB / Octave |
| Lowest Recommended Crossover: | 2,000 Hz at 12 dB / Octave |
| Diaphragm: | Commercially pure titanium |
| Voice Coil Diameter: | 1.4″ / 34.4 mm |
| Voice Coil Material: | Edge-wound ribbon with high temp Kapton bobbin |
| Flux Density: | 11,500 gauss (1.15T) |
| Dimensions: | 3.54″ (90 mm) diameter x 2.40″ (61 mm) depth |
| Horn Coupling Diameter: | .938″ (23.8 mm) |
| Horn Coupling Threads: | Standard 1 3/8″ / 18″ |
| Net Weight: | 33.6 oz. |
| Shipping Weight: | 38 oz. |
| Weight Unpacked: | 2.26 lb(1.024 kg) |
| Weight Packed: | 2.26 lb(1.024 kg) |
| Width Packed: | 4.25″(10.795 cm) |
| Height Packed: | 4.25″(10.795 cm) |
| Depth Packed: | 3.25″(8.255 cm) |
