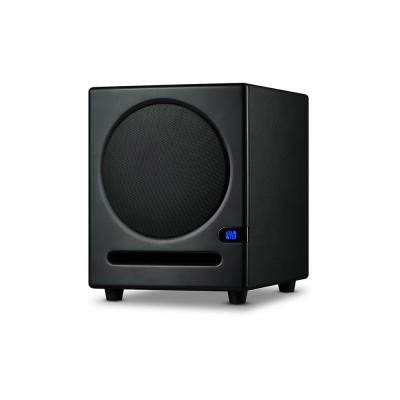

PreSonus Eris Sub8

PreSonus Eris Sub8 – Compact Studio Subwoofer

SKU: Eris Sub8

Compact Studio Subwoofer

Our Price: $199.95

Available: Online Only

Available on backorder

Description

PreSonus Eris Sub8

The Eris Sub8 is the first subwoofer to join the lauded and best-selling Eris studio monitor line. We called it Eris because it’s been designed from the ground up to be part of the family; it compliments the voicing and frequency response of the modern Eris classics. Of course, they’ll play nice with other monitors, too, but if you’ve got a pair of Eris in your home or studio already, the Eris Sub8 is the single best subwoofer you can get to put a little boom in your room.


Maximize your frequency response and accuracy.

The surprisingly loud 100-Watt Eris Sub8 drops down to a molar-rattling 30Hz—a full 50Hz below the Eris 3.5s. This allows you to both rock harder and produce better mixes, as you’ll be hearing an accurate representation of your work. For EDM and hip-hop producers in particular, a sub is a must-have. The Eris Sub8 lets you naturally extend the reach of your Eris E3.5 or E4.5 monitors in a manner appropriate to smaller rooms; exactly where these monitors excel.

Total control and connectivity.

Thanks to robust configuration and I/O, you’ll be able to tailor your Eris Sub8 configuration exactly to your mixing and listening needs. You can connect your existing monitors via ¼” TRS or RCA, set the input level to your liking, and even invert the polarity. Most importantly, you get a High Pass Filter and a Low Pass Crossover control that ensures your Eris Sub8 starts working at the precise low-frequency point where your main monitors stop working. This makes sure you avoid the flubbery, smudged, low-end mess that one hears in redundant, duplicate, redundant bass reproduction that occurs without a crossover.


All work and all play.

While we’ve designed the Sub8 to compliment our smaller-form Eris media reference monitors, we also know that gamers, partiers, and movie buffs alike all enjoy some room-rattle now and again. So rest easy knowing that the Eris Sub8s will upgrade the performance of any powered speaker configuration in a home theatre or gaming rig.

​Accuracy defined.

When you hear the low-frequency foundation of your mix accurately, you can make more informed decisions and create more translatable mixes. You’ll also have more fun.

Hear the Eris Sub8 at your favorite PreSonus® dealer.

Features

  • 8-inch, front-firing, paper-composite low-frequency transducer with high-elastisity rubber surround
  • Class AB amplifier: 100W peak (50W RMS) power
  • Input gain control (-30 dB to +6 dB, continuously variable)
  • Continuously variable lowpass filter (50 Hz to 130 Hz)
  • Defeatable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Eris Sub8 outputs to the main speakers
  • Left and right, balanced ¼-inch TRS and unbalanced RCA main inputs
  • Left and right balanced ¼-inch TRS and unbalanced RCA pass-through outputs for connecting satellite speakers
  • Polarity invert switch
  • Protection: RF interference, Output-current limiting, Over-temperature, Turn-on/off transient, Subsonic filter, External mains fuse

Technical Specifications

Inputs

Balanced ¼” TRS

Unbalanced RCA

Outputs

2- Balanced ¼” TRS (full range with 80 Hz HPF option)

2- Unbalanced RCA (full range with 80 Hz HPF option)

Performance

Frequency Response30 Hz – 200 Hz
Low Pass Filter Frequency50 – 130 Hz (variable)
Signal-to-Noise Ratio>95 dB (A weighted)
THD0.05%
Amplifier Power100W peak, 50W RMS
Power Consumption100W
Amplifier TypeClass AB
Peak SPL at 1m113 dB
Woofer8” paper-composite with high-elasticity rubber surround, front-firing
Acoustic PortFront-firing bass reflex

User Controls

Input Gain Range-30 to +6 dB
Polarity Switch0° or 180°
Low Pass Filter Control50 Hz to 130 Hz
High Pass Filter SwitchOn/Off

Protection

RF interference

Output-current limiting

Over-temperature

Turn-on/off transient

Subsonic filter

External mains fuse

Power

100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet

Vinyl-laminated MDF

Physical

Width9.8” (250 mm)
Depth12.75” (324 mm)
Height11.6” (295 mm)
Weight16.3 lbs (7.4 kg)

As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
