Description

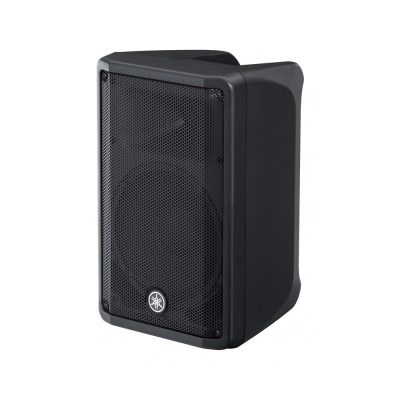

Yamaha DBR10

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

General specifications

Speaker type

• 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB)

• 55Hz – 20kHz

Nominal coverage

• H 90°
• V 60°

Components

• LF Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite
• HF Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite

Crossover

• 2.1kHz: FIR-X tuning™ (linear phase FIR filter)

Output power

• Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)

Maximum output level (1m; on axis)

• 129dB SPL

I/O connectors

• INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

Processors

• D-CONTOUR: FOH/MAIN, MONITOR, OFF

Heat dissipation

• Fan cooling, 4 speeds

Power requirements

• 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz

Power consumption

• 60W(1/8 Power Consumption), 18W(Idle)

Cabinet material

• Plastic

Finish

• Black

Handle

• Top x 1

Flying and mounting hardware

• Bottom x 2 (Fit for M8 x 15 mm eyebolts)

Pole socket

• 35mm (Bottom x 1)

Dimensions

• W 308mm (12.1″)
• H 493mm (19.4″)
• D 289mm (11.4″)

Net weight

• 10.5 kg (23.2 lbs)
