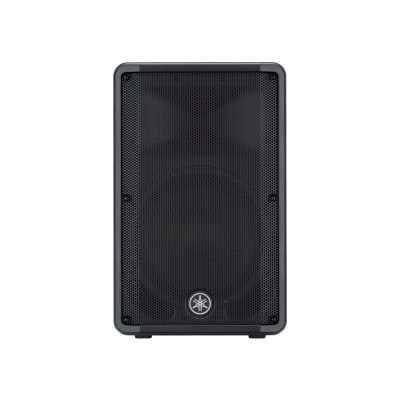

Yamaha DBR12 – Active 12″ Speaker

SKU: DBR12

-

12″ Active 2-way Speaker – Black

Our Price: $439.99

Available: Online Only

In stock (can be backordered)

Categories:
Brand:

Description

Yamaha DBR12

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

General specifications

Speaker type

  • 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB)

  • 52Hz – 20kHz

Nominal coverage

  • H 90°
  • V 60°

Components

  • LF Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite
  • HF Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet:Ferrite

Crossover

  • 2.1kHz: FIR-X tuning™ (linear phase FIR filter)

Output power

  • Dynamic: 1,000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)

Maximum output level (1m; on axis)

  • 131dB SPL

I/O connectors

  • INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

Processors

  • D-CONTOUR: FOH/MAIN, MONITOR, OFF

Heat dissipation

  • Fan cooling, 4 speeds

Power requirements

  • 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz

Power consumption

  • 74W(1/8 Power Consumption), 18W(Idle)

Cabinet material

  • Plastic

Finish

  • Black

Handle

  • Side x 2

Flying and mounting hardware

  • Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)

Pole socket

  • 35mm (Bottom x 1)

Dimensions

  • W 376mm (14.8″)
  • H 601mm (23.7″)
  • D 348mm (13.7″)

Net weight

  • 15.8 kg (34.8 lbs)
