B&C DE250 – 1-Inch High Frequency Compression Driver
SKU: DE250-8
-

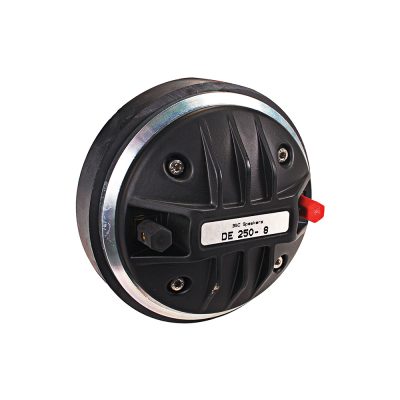

The B&C DE250 is a 1-Inch High Frequency Compression Driver.
Our Price: $120.00
Out of stock
Description
The B&C DE250 is a 1-Inch High Frequency Compression Driver.
The B&C DE250 is a 1-inch HF driver that uses its polyimide diaphragm and optimized ferrite motor to great effect. It is a durable, accurate, and great-sounding professional audio transducer.
Features:
– 220 W continuous program power capacity
– 1.4′ horn throat diameter
– 75 mm (3 in) aluminium voice coil
– Titanium diaphragm
– 500 – 18000 Hz response
– 106.5 dB sensitivity
– Shorting copper cap for extended HF response
Specifications:
| Throat diameter: | 36 mm (1.4 in) |
| Nominal impedance: | 8 Ω |
| Minimum impedance: | 8.5 Ω |
| Nominal power handling: | 110 W |
| Continuous power handling: | 220 W |
| Sensitivity (1W/1m): | 106.0 dB |
| Frequency range: | 1 – 18 kHz |
| Recommended crossover: | 1.0 kHz |
| Voice coil diameter: | 75 mm (3.0 in) |
| Winding material: | Aluminum |
| Inductance: | 0.14 mH |
| Diaphragm material: | Titanium |
| Flux density: | 1.8 T |
| Magnet material: | Ceramic |
| Overall diameter: | 170 mm (6.7 in) |
| Depth: | 64 mm (2.5 in) |
| Net weight: | 4.5 kg (9.9 lb) |
| Shipping units: | 2 |
| Shipping weight: | 9.6 kg (21.2 lb) |
| Shipping box: | 210 x 210 x 190 mm (8.3 x 8.3 x 7.5 in) |
