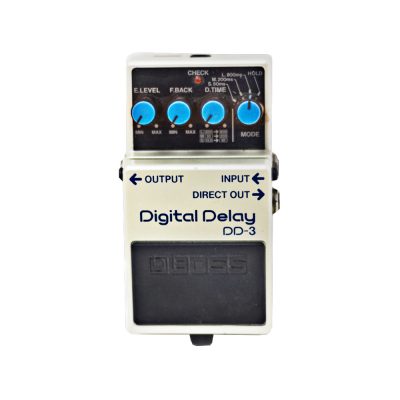

Boss DD-3

The Boss DD-3 is a compact pedal that provides a digital delay effect with outstanding quality equivalent to that of a dedicated rackmount delay unit, all with simple stompbox-style control.

Features:

• Compact delay pedal with superb BOSS sound quality
• Provides 3 delay time modes and a Delay Time control for quick adjustment of exact delay time between 12.5ms – 800ms
• Hold function repeats delay sound indefinitely for interesting effects
• BOSS 5-year warranty

Specs:

• Input Impedance: 1 M ohms
• Output Impedance: 10 k ohms or greater
• Residual Noise Level: ?95 dBu (IHF-A, Typ.)
• Connectors: INPUT Jack, DIRECT OUTPUT Jack, MAIN OUTPUT Jack AC Adaptor Jack (DC 9 V)
• Power Supply: DC 9 V: Dry Battery 9 V type, AC Adaptor
• Current Draw: 45 to 65 mA (DC 9 V)
• Accessories: Dry Battery 9 V type (6F22/9 V)
• Options: AC Adaptor (PSA-Series)
• Width: 73 mm 2-7/8 inches
• Depth: 129 mm 5-1/8 inches
• Height: 59 mm 2-3/8 inches
• Weight: 0.5 kg 1 lbs.
