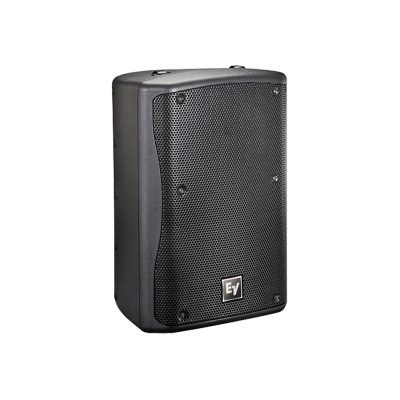

Electro-Voice ZX3-90 – 12-Inch 2-Way 600-Watt Passive PA Loudspeaker System
SKU: ZX3-90-
Our Price: $1,049.00
In stock
Description
The Electro-Voice ZX3-90 is a 12-Inch 2-Way 600-Watt Passive PA Loudspeaker System.
The Electro-Voice ZX3-90 offers an unprecedented level of lightweight, 12-inch, two-way, loudspeaker performance for the widest variety of portable and installed applications. Featuring the new DVX3121 12-inch woofer and the ND2 neodymium compression driver, the ZX3 continues the groundbreaking innovation of the EV DVX woofer program, joining the ranks of EV’s ZX series between the eight-inch ZX1 and the 15-inch ZX5.
When it comes to problem and solution versatility, the ZX3 is in a class of its own. In addition to the highest performance drivers available, a complete range of optional accessories, including the CB-5 array kit, MB3 wall and ceiling-mount bracket, HA-3 handle adapter for use with the VSA-1 strong arm mount, and TCA-1 truss clamp adapter allow the ZX3 to be easily and precisely configured in multiple box arrays, mounted on trusses or tripods, deployed as monitors, or used as system mains with a subwoofer.
Housed in a stylish yet rugged injection molded enclosure, the ZX3 shares the same functionality as the larger ZX5, with 90 degre x 50 degree or 60 degree x 60 degree horn dispersion patterns, 45 degree or 55 degree monitor angles, passive or biamp operation, and seven M8 rigging points. The ZX3 is available in a weatherized version and in either a black or white finish. An optional HDC-3 heavy-duty stackable cover is also available.
Features:
– DVX3121 12″ LF Transducer with Forced Air Cooling
– ND2 2-Inch Voice Coil, 1″ Exit Neodymium Compression Driver
– 90° x 50° Coverage Pattern
– 600W Continuous (2400W Peak) Power Handling
– High Sensitivity, 131 dB Maximum SPL
– Adjustable Monitor Angle (45° or 55°)
– 2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
– Available in Black or White
– Passive/Biamp Selectable
– Full Line of Accessories
Specifications:
Freq. Response1 (-3 dB): 58 Hz – 15 kHz
Freq. Range1 (-10 dB): 48 Hz – 20 kHz
Rec. Hipass Frequency: 50 Hz
Axial Sensitivity1: 97 dB (1W/1m)
Max. Calculated SPL: 131 dB
Horizontal Coverage: 90°
Vertical Coverage: 50°
Power Handling (Passive): 600W Continuous, 2400W Peak
LF Power Handling (Biamp): 500W Continuous, 2000W Peak
HF Power Handling (Biamp): 40W Continuous, 160W Peak
LF Transducer: DVX3121, 12 in (305mm) Driver
HF Transducer: ND2, 1 in (25.4mm) exit Neodymium
Compression Driver
Crossover Frequency: 2 kHz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.2 Ohms
Connectors: (2) Neutrik Speakon NL4?s
Enclosure Material: Polypropylene Structural Foam
Suspension: Enclosure has locations for 4 Single-Stud
Attachment Plates and 10 Forged Steel
Eyebolts – 2 on Top, 2 on Bottom, 2 on
Side, and 1 on Rear of Enclosure
Grille: Polyester Powder Coated, 16GA
Galvanized Steel, with Rotatable Logo
Dimensions (H x W x D): 613mm x 397mm x 362mm
(24.14″ x 15.64″ x 14.26″)
Net Weight: 19.8 kg (43.7 lbs)
Shipping Weight: 22.1 kg (48.6 lbs)
