Description

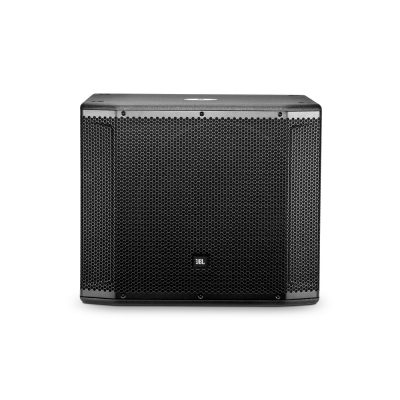

JBL SRX818S

The JBL SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 2400W Peak, 1200W Program, 600W Continuous
• Frequency Range: 28Hz-150Hz
• Frequency Response: 45Hz-150Hz
• Max SPL: 129dB (Peak)
• Amplification options: Passive
• 2279 LF 8 Ohm 18” Woofer

Applications

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

Specifications

• System Type Passive 18”, subwoofer system
• Maximum SPL Output 123dB (Continuous), 129dB (Peak)
• Frequency Response (-10dB) 28hz – 150hz
• Frequency Response (-3 dB) 45hz – 150hz
• Sensitivity 95dB
• System Power Rating 2400W Peak, 1200W Program, 600W Continuous
• Nominal Impedance 8 Ohm
• Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive
• LF Driver 2279H
• Crossover Frequency 80hz
• Enclosure 18mm Duraflex coated plywood
• Suspension/Mounting M20 Threaded Pole Mount
• Casters Accept JBL WK-4S Kit
• Handles 4
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
• Weight 78.0 lbs (35.4kg)
• Shipping Weight 88 lbs (40.2kg)
