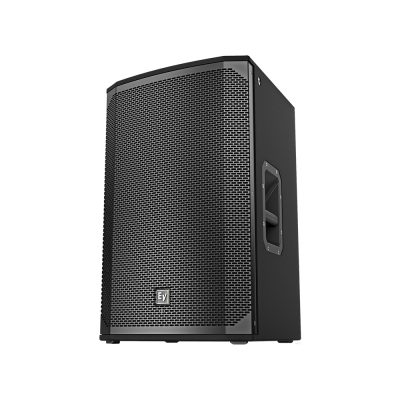

Electro-Voice EKX-15

The Electro-Voice EKX-15 is a 15-Inch 2-Way 1600-Watt Passive Loudspeaker.

Description

• EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

• Axial Sensitivity (SPL, 1 W @ 1 m) 96 dB Full Space Measurement
• Connector Type Dual NL4
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• Crossover Frequency 1.6 k Hz
• Enclosure Material 15 mm, plywood with EVCoat
• Frequency Response (-10 dB) 50 Hz – 20 k Hz Full Space Measurement
• Frequency Response (-3 dB) 75 Hz – 18 k Hz Full Space Measurement
• Grill 18 AWG steel with powder coat
• HF Transducer DH-1M 1-inch titanium compression driver
• LF Transducer EVS-15M 381 mm (15 in)
• Maximum SPL 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
• Minimum Impedance of 7.2 Ω
• Nominal Impedance 8 Ω
• Power Handling (Continuous / Peak) 400 W/1600 W
• Recommended High-Pass Frequency 50 Hz
• Shipping Weight 28.2 kg (62.17 lbs)
• Suspension (8) M10 threaded mounting points
• Height 16RU 685 mm (26.97″)
• Width 432 mm (17.01″)
• Depth 429 mm (16.89″)
• Weight Net 23.2 kg (51.15 lbs)
